Configuring an i-PRO Gateway

Before you can enroll an i-PRO ICV MK3 in-car system in your Clearance account, you must configure an i-PRO Gateway.

1. From the Devices page in Clearance, click Configurations > Devices .
2. Click Create new device.

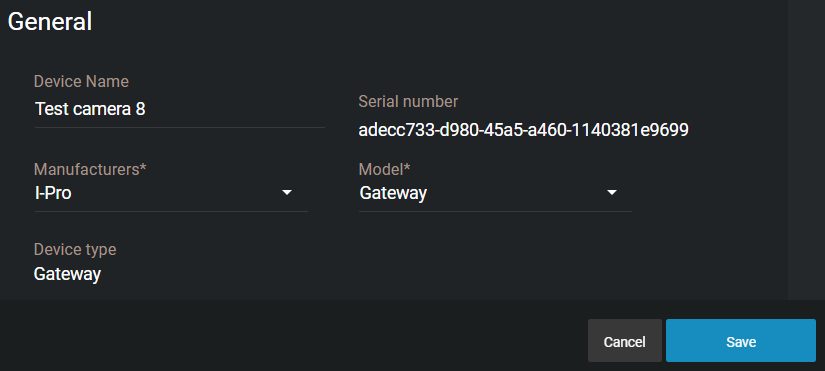

3. Enter a name for the camera, and specify the manufacturer and model.



4. Click Save.
   The i-PRO Gateway is created.



5. From a file explorer window, open the UEMSLegacyService.xml file.

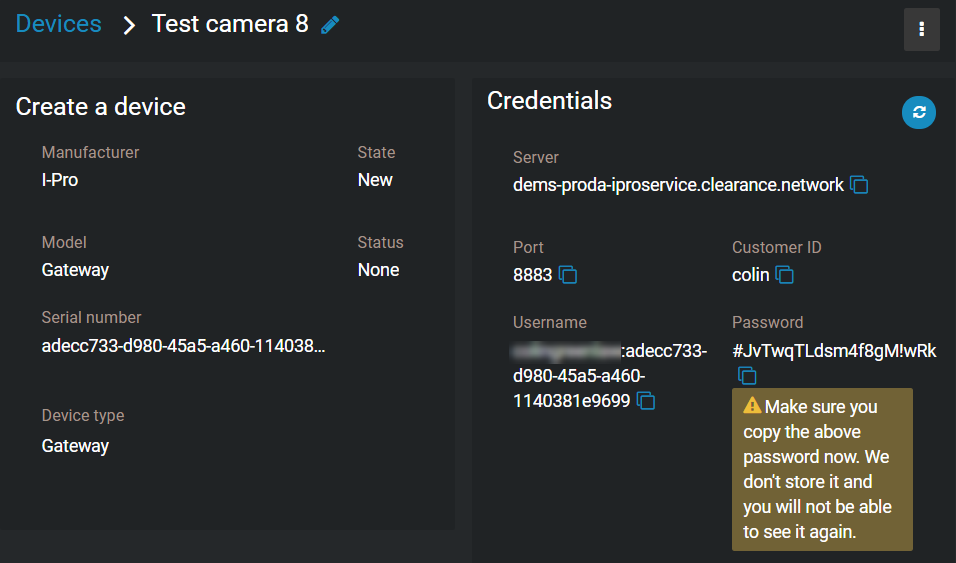

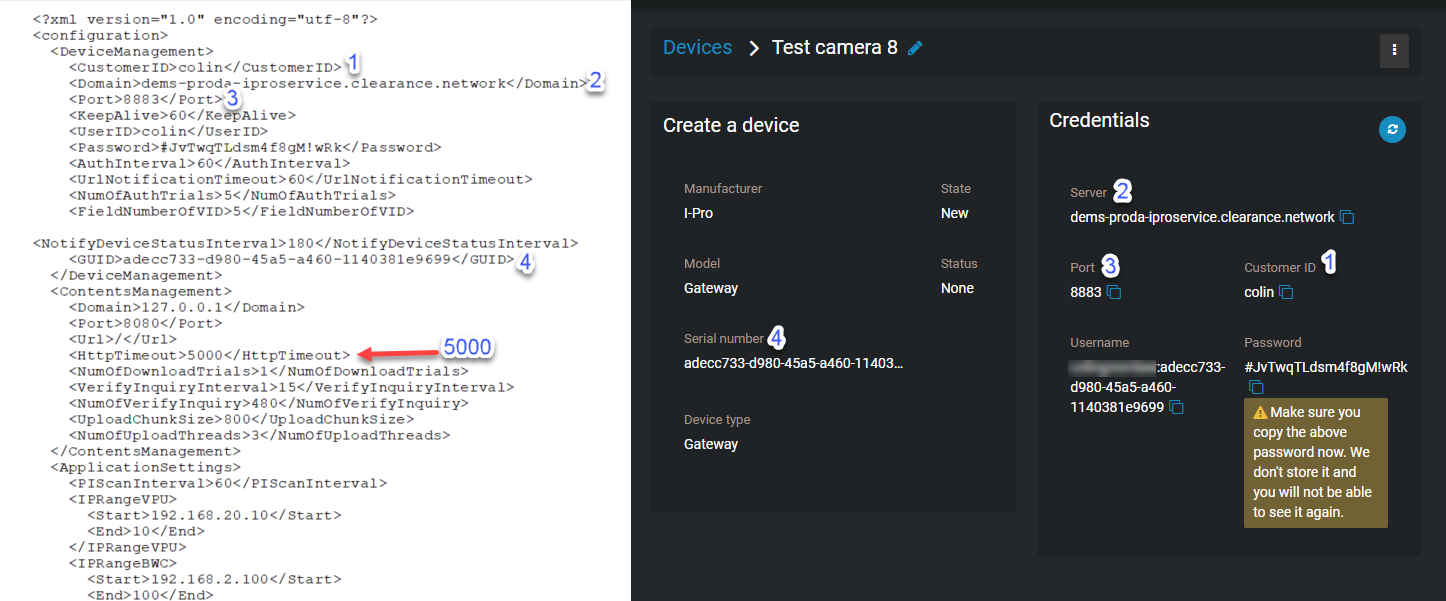

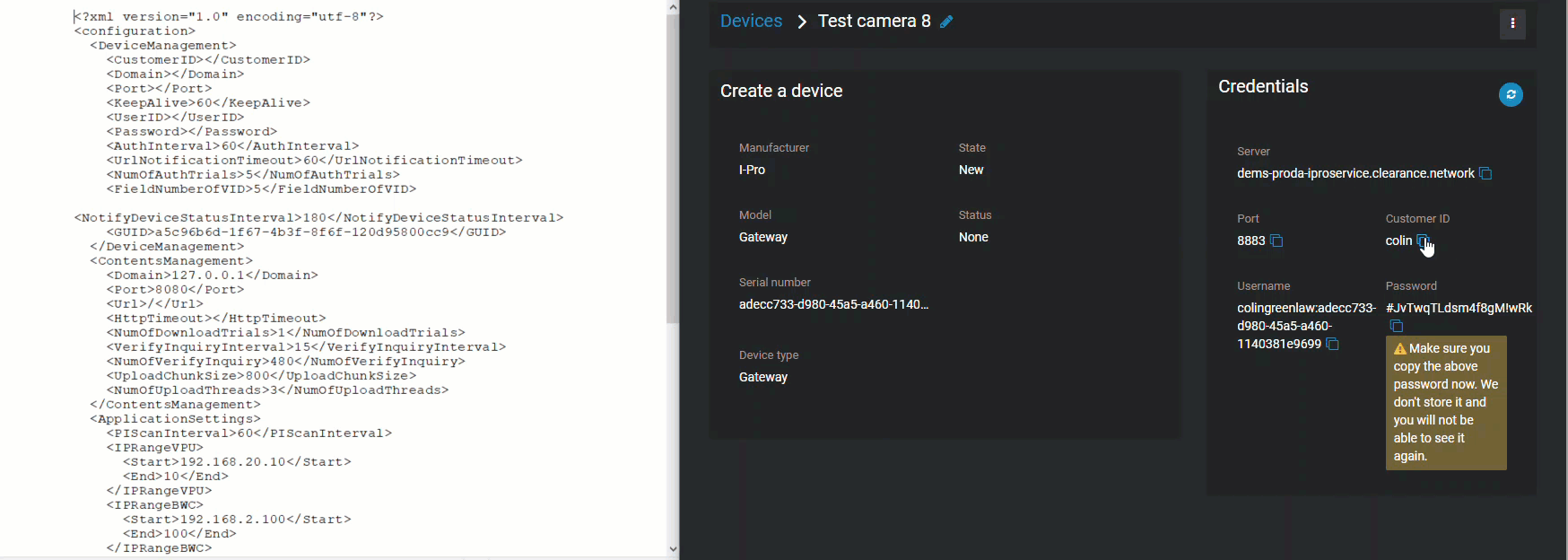

6. From the Devices page in Clearance, copy your credentials and paste them in the corresponding elements in the UEMSLegacyService.xml file.

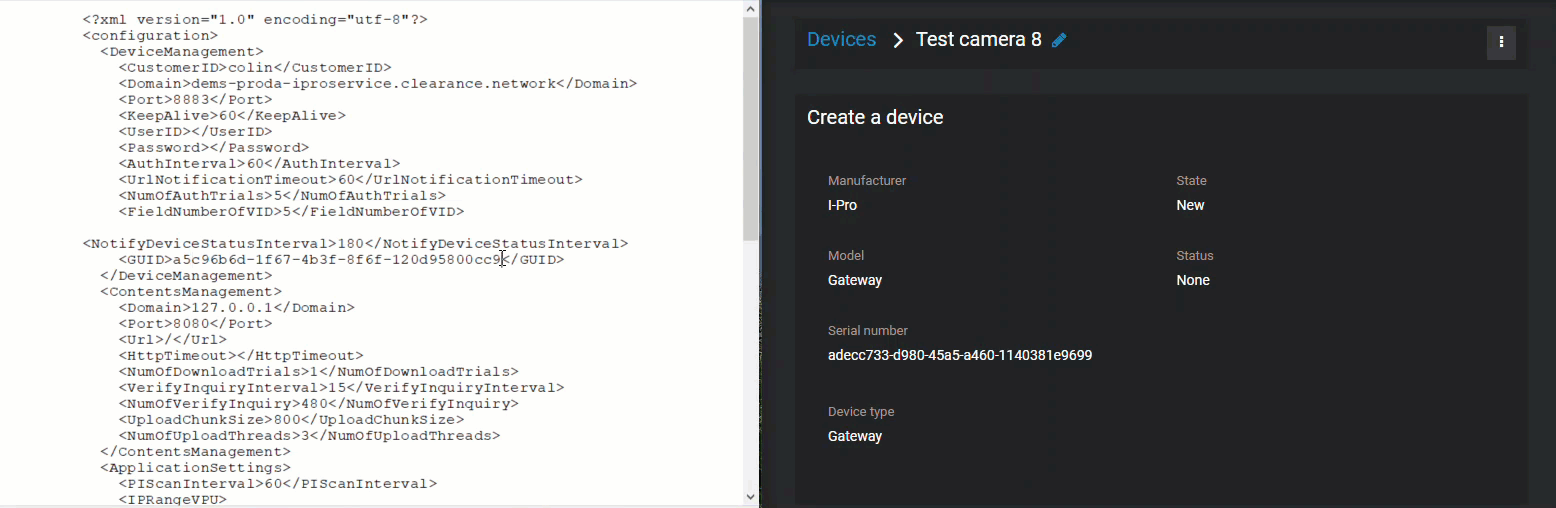

7. From the Devices page in Clearance, copy the Serial number and paste it inside the <GUID></GUID> element in the UEMSLegacyService.xml file.



8. From the UEMSLegacyService.xml file, change the <HttpTimeout> value to 5000.





9. Save and close the UEMSLegacyService.xml file.
10. Open the UEMSLegacyServiceConfiguration.exe file.

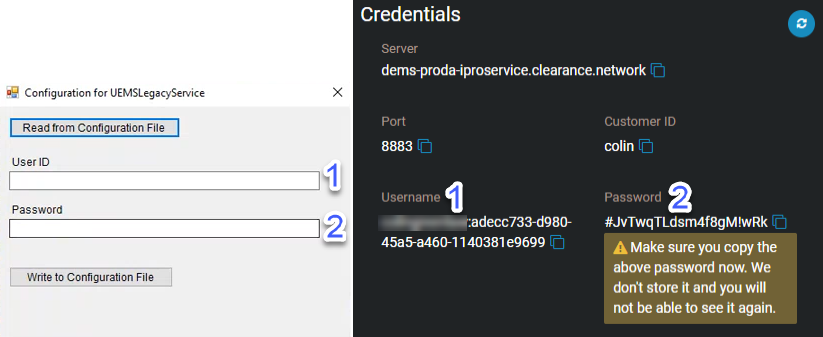

11. From the Devices page in Clearance, copy the Username and Password and paste them in the User ID and Password fields in the Configuration for UEMSLegacyService window.



12. Click Write to Configuration File.
13. Open the UEMSLegacyService.xml file. The User ID and Password are present in the file.
14. Ensure the SSLUnused.dat file is removed from UEMSLegacyService.
    Note: If you need to remove the SSLUnused.dat file, you might need to restart the UEMSLegacyService.
